KTY Series Silicon Temperature Sensors

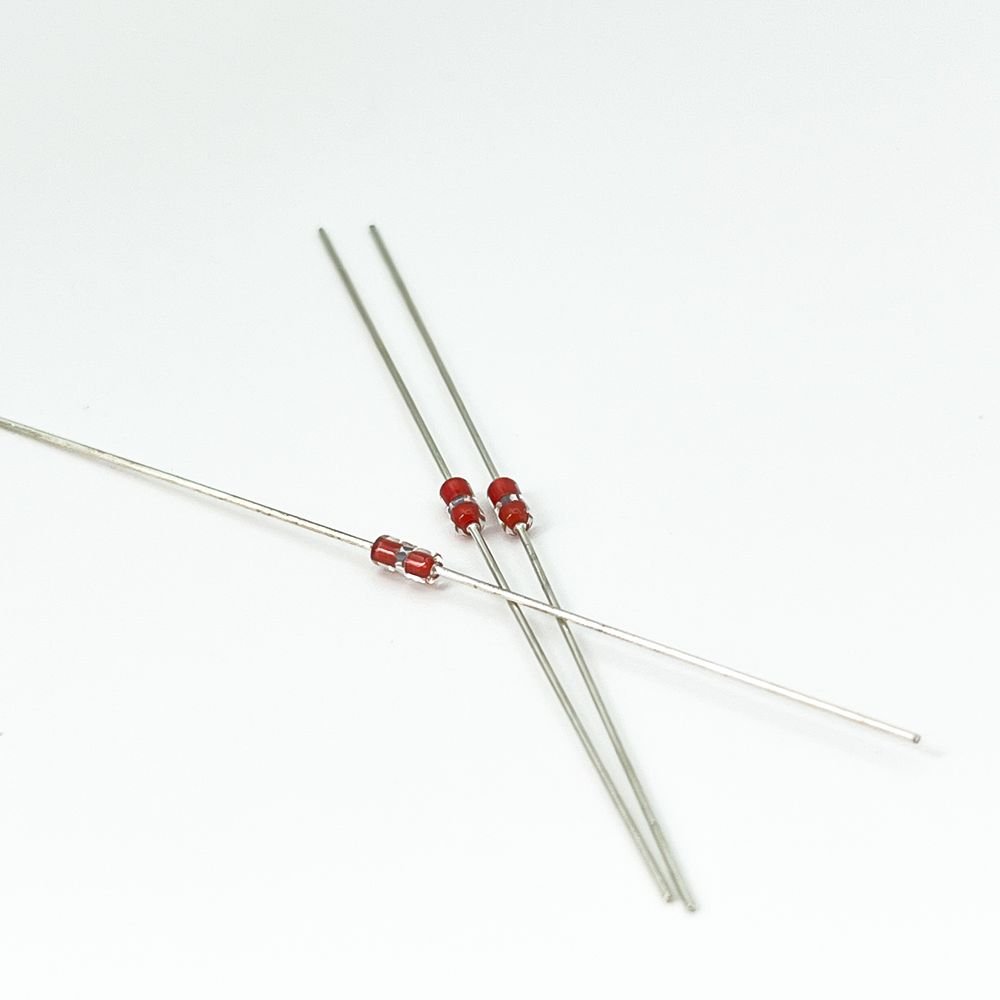

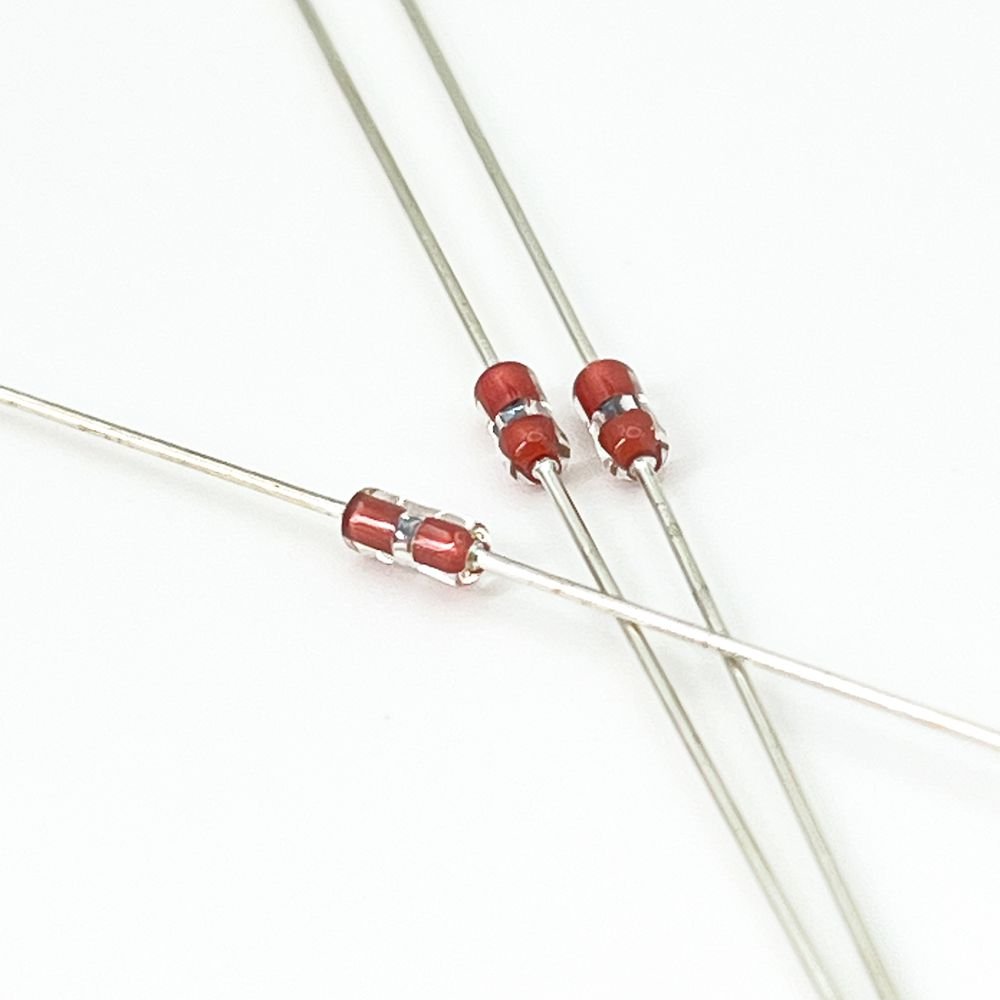

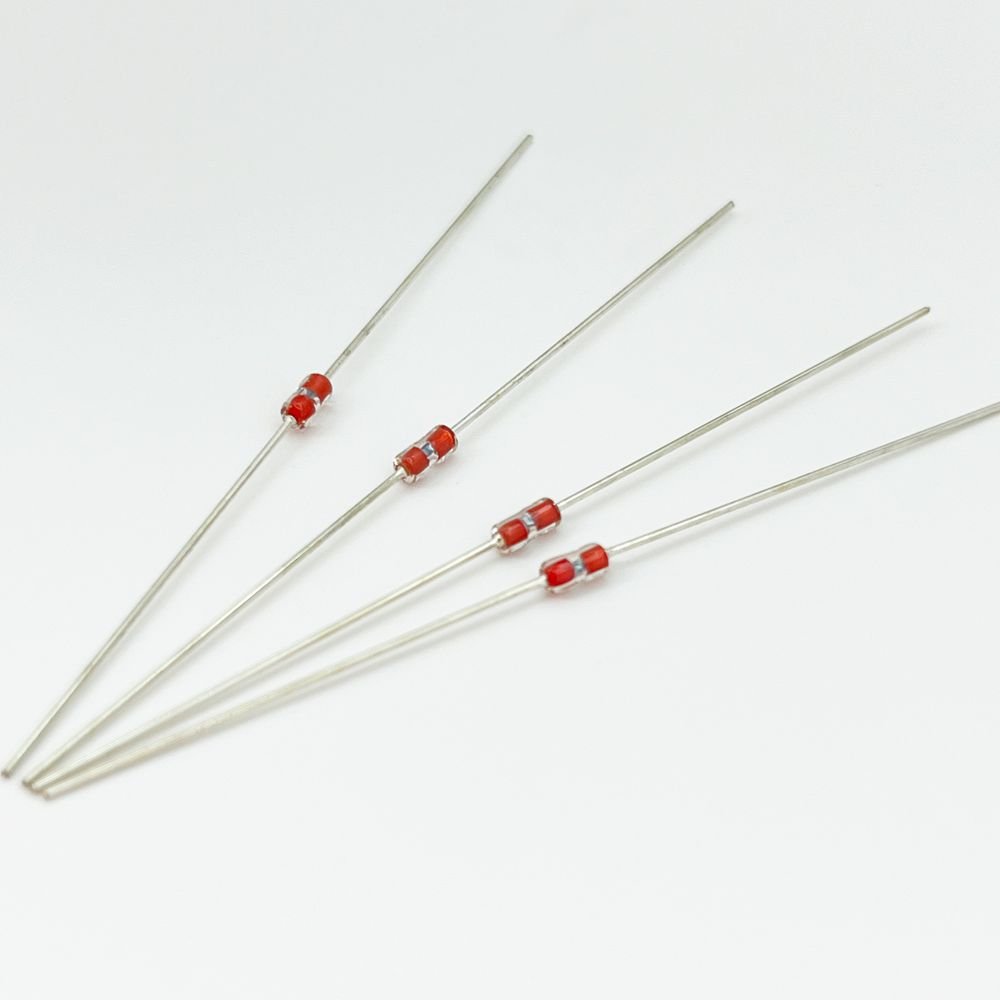

This KTY silicon temperature sensor is a linear silicon PTC thermistor hermetically sealed in DO35 glass package with axial Dumet wire leads. It features nearly linear positive temperature coefficient and fail-safe overheat protection, working stably from -55°C to +175°C. With outstanding long-term stability and tiny size, it supports customizable R25 resistance for automotive, motor and industrial temperature monitoring

Datasheet Download

Features

Near-linear PTC characteristic with positive temperature coefficient
Fail-safe performance and excellent stability
Hermetic DO35 glass encapsulation with axial lead design
Wide measuring range: -55°C ~ +175°C
Multiple customizable R25 resistance values

Applications

Overheat protection for motors, transformers and generators
Power supplies
Thermal monitoring of frequency converters & power supplies
Household white goods & home appliances
Industrial electronic circuit temperature measurement & protection

Specification

Additional information

Dissipation Constant	≥1.5 mW/°C (still air)
Time Constant	≤20 seconds (still air)
Measuring current	2mA
Continuous sensor current	Max10A in air 25℃ ,Max2A in air 175℃
Maximum Power	50mW
