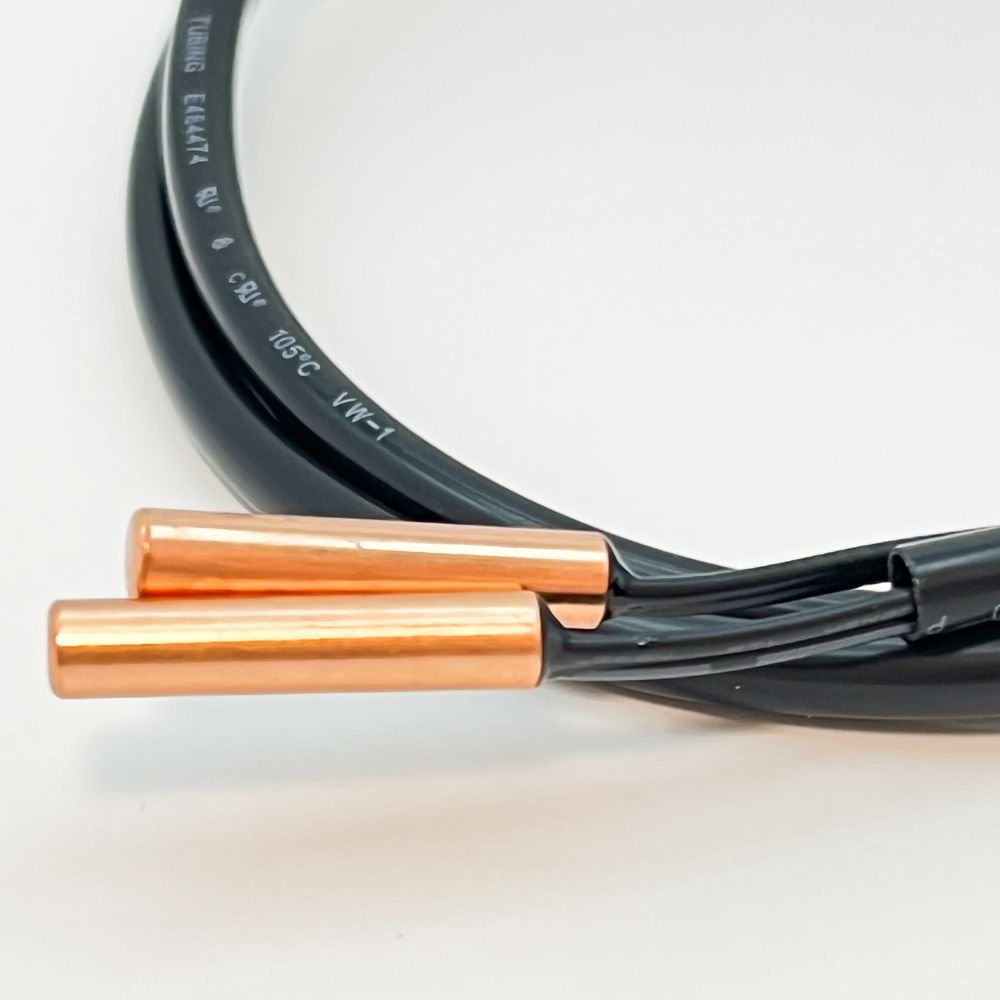

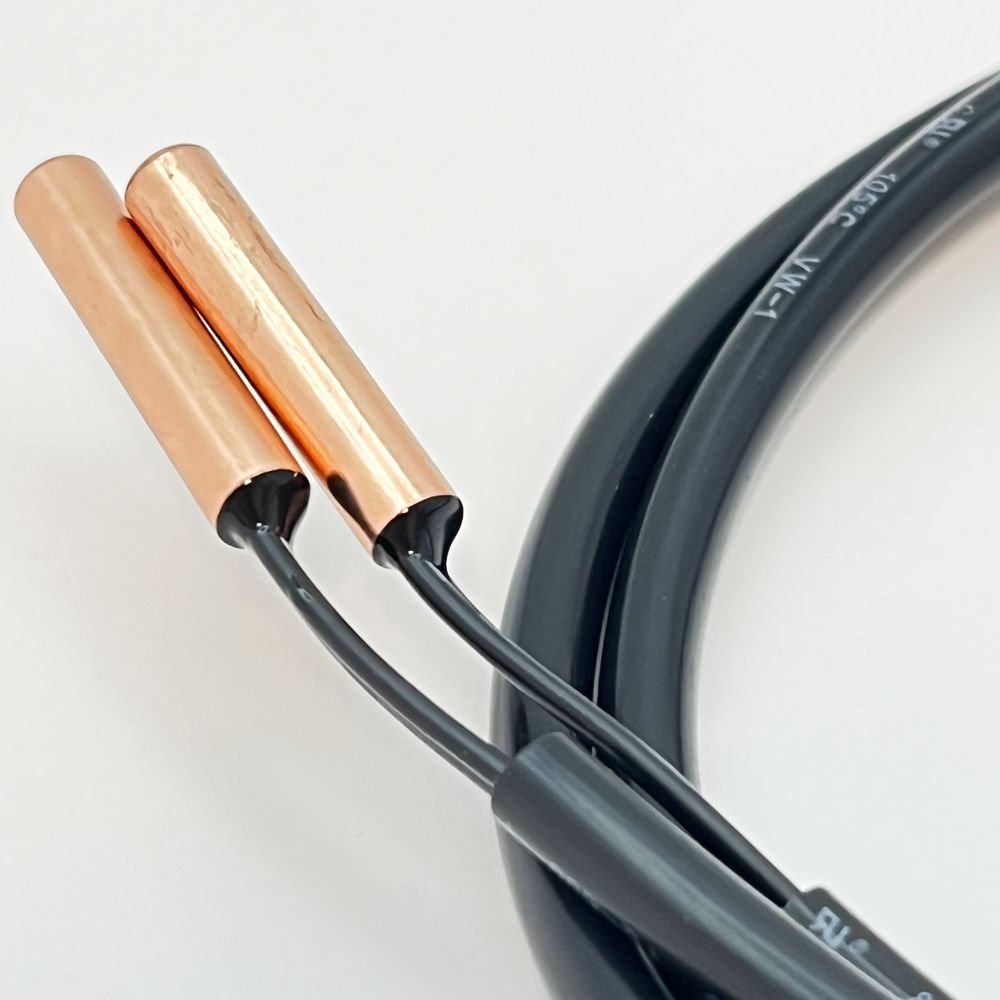

Probe Temperature Sensors TYPE TS21

This TS21 series NTC probe temperature sensor adopts NTC thermistor as sensing core, equipped with customizable tubular metal housings including SUS304/SUS316 stainless steel, copper, brass and aluminum. Probe size, cable type and connectors are fully customizable. Featuring mature processing technology, it delivers excellent moisture resistance and stable performance, ready for direct installation without secondary processing for multiple temperature detection scenarios.

Datasheet Download

Features

Multiple metal housing options: stainless steel, copper, brass, aluminum
Outstanding stability and strong humidity resistance
Diverse customizable cables and wire specifications
Flexible probe size and connector design for custom demands
Simple structure for quick and easy installation

Applications

Water heaters & heat pump temperature detection
Refrigerators and ice maker machines
Floor heating system temperature monitoring
Air conditioning & evaporator sensing probes
General household and industrial temperature measurement

Specification

Additional information

Dissipation Constant	≥2.5mW/℃
Time Constant	≤20 seconds (still air)
Maximum Power	50mW
Operating Temperature	-40~125°C
