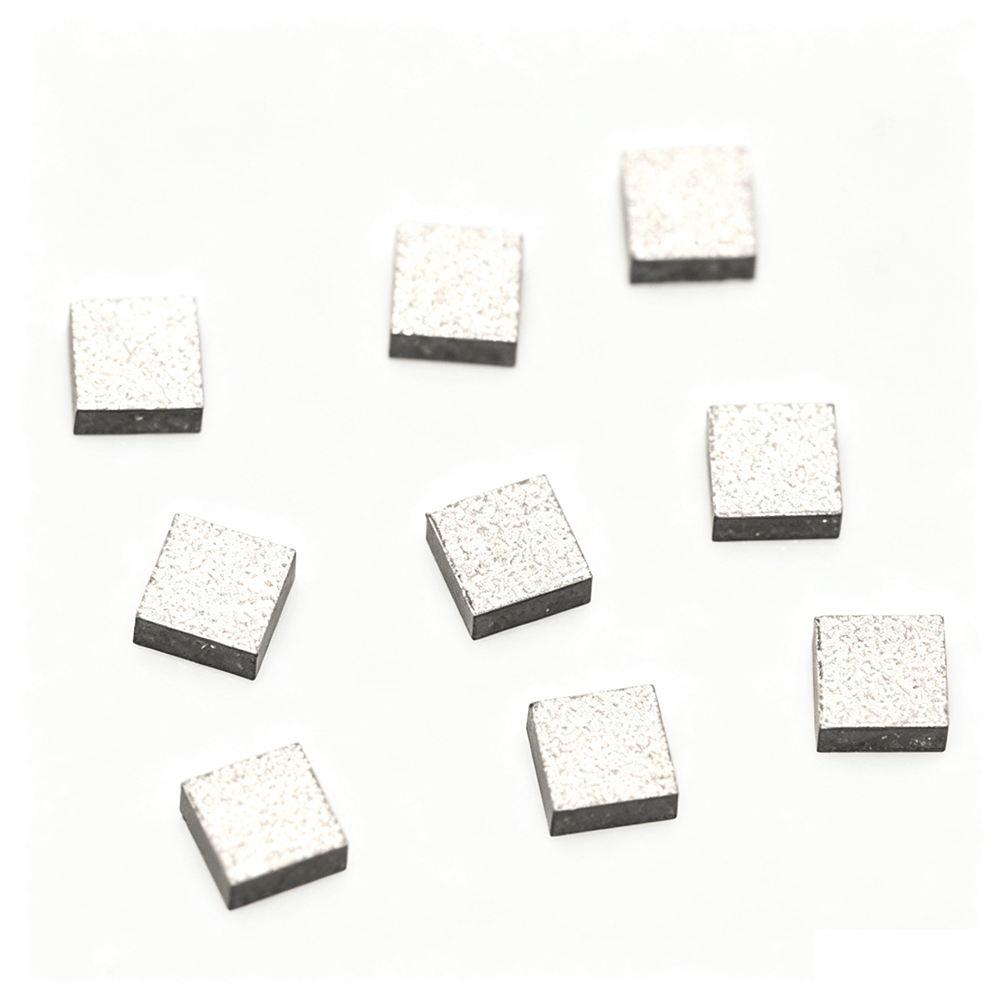

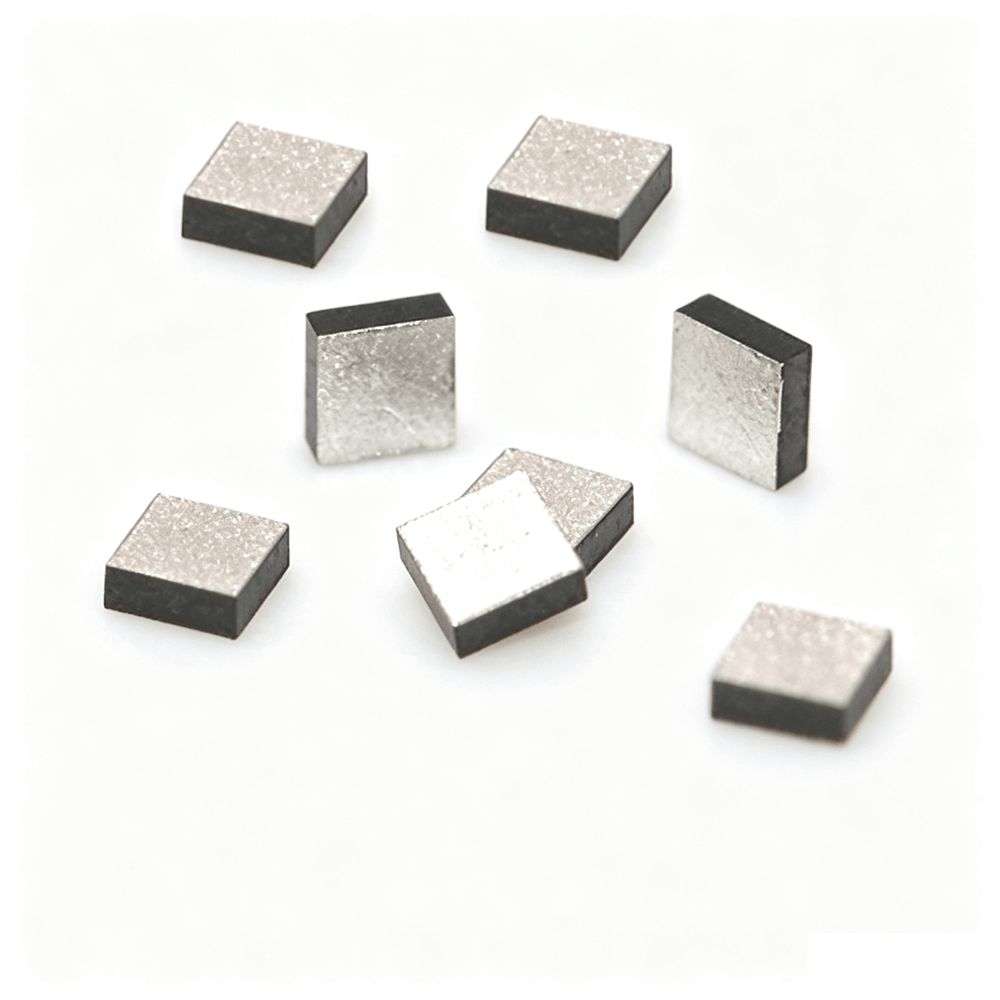

This leadless bare NTC thermistor chip is equipped with silver electrode terminals. It features tiny size, fast thermal response and high precision with outstanding batch consistency and long-term reliability. The bare chip can be freely matched with diverse packaging forms including SMD, epoxy coating and glass sealing. Customizable dimensions and resistance parameters are available to meet customized temperature sensing demands across consumer, medical, automotive and industrial electronic modules.
| Dissipation Constant | 0.8-1.3mW/°C (still air) |
|---|---|
| Time Constant | 2~3 seconds (still air) |
| Maximum Power | 25mW |
| Operating Temperature | -40~250°C |
