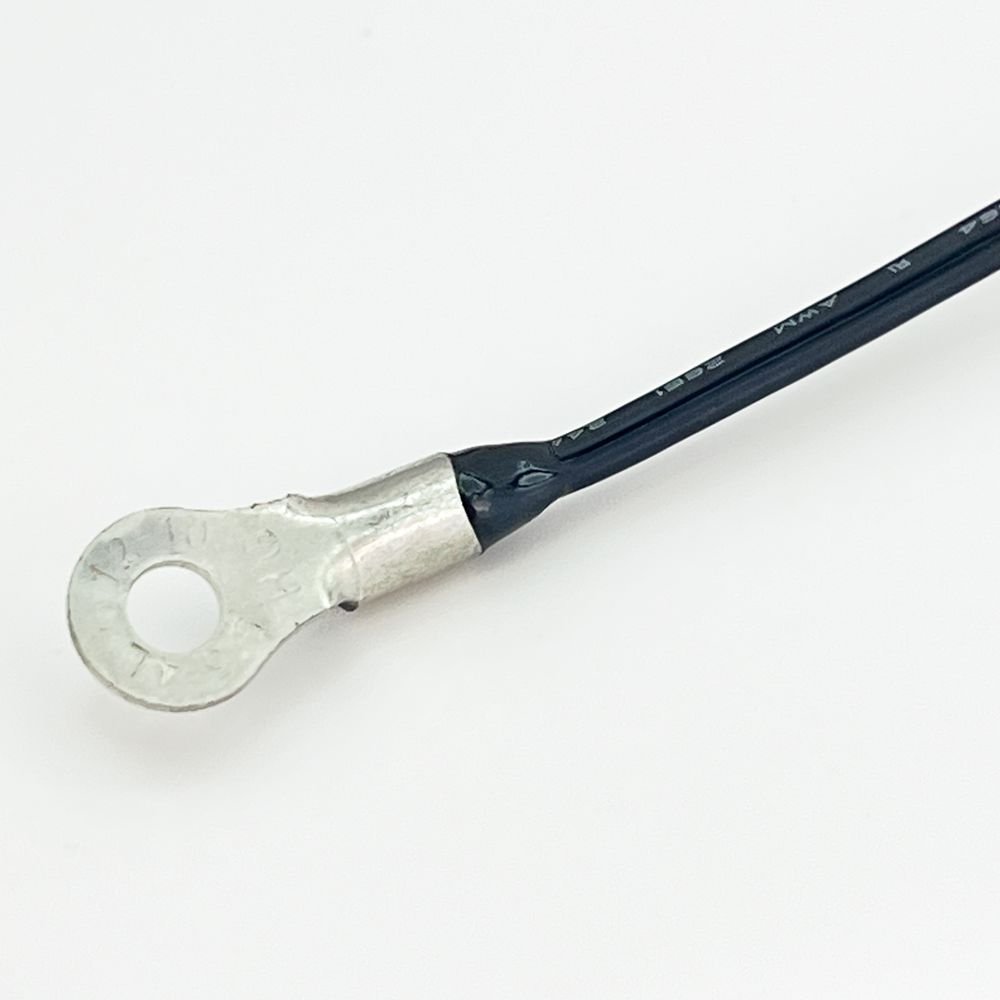

Ring Terminal Temperature Sensors TYPE TS23

TS23 ring‑terminal temperature sensor integrates an NTC thermistor soldered to AWG22‑AWG26 stranded copper wires with PVC or Teflon insulation. The sensing part is epoxy‑coated and assembled to tin‑plated copper ring lugs with buffer layer. Pre‑twisted and tinned lead ends are ready for wiring. It enables reliable flat‑surface temperature measurement, supports multiple lug hole sizes and wire options for diverse industrial, automotive and household thermal monitoring scenarios.

Datasheet Download

Features

Easy mounting via screw or nut with ring lug terminal
Good thermal contact for accurate surface temperature measurement
High stability, moisture proof performance and long durability
Multiple lug hole sizes and wire types available for selection
Cost effective design, suitable for narrow mounting spaces

Applications

Inverter heat sinks and power supplies
Automotive equipment, heat pumps and data projectors
Office automation devices: printers, fan assemblies and thermal heads
Measuring instruments, controllers and home electronic appliances
Security devices and remote controller thermal detection

Specification

Additional information

Dissipation Constant	3.0mW/℃
Time Constant	≤20 seconds (still air)
Maximum Power	50mW
Operating Temperature	-40~125°C
