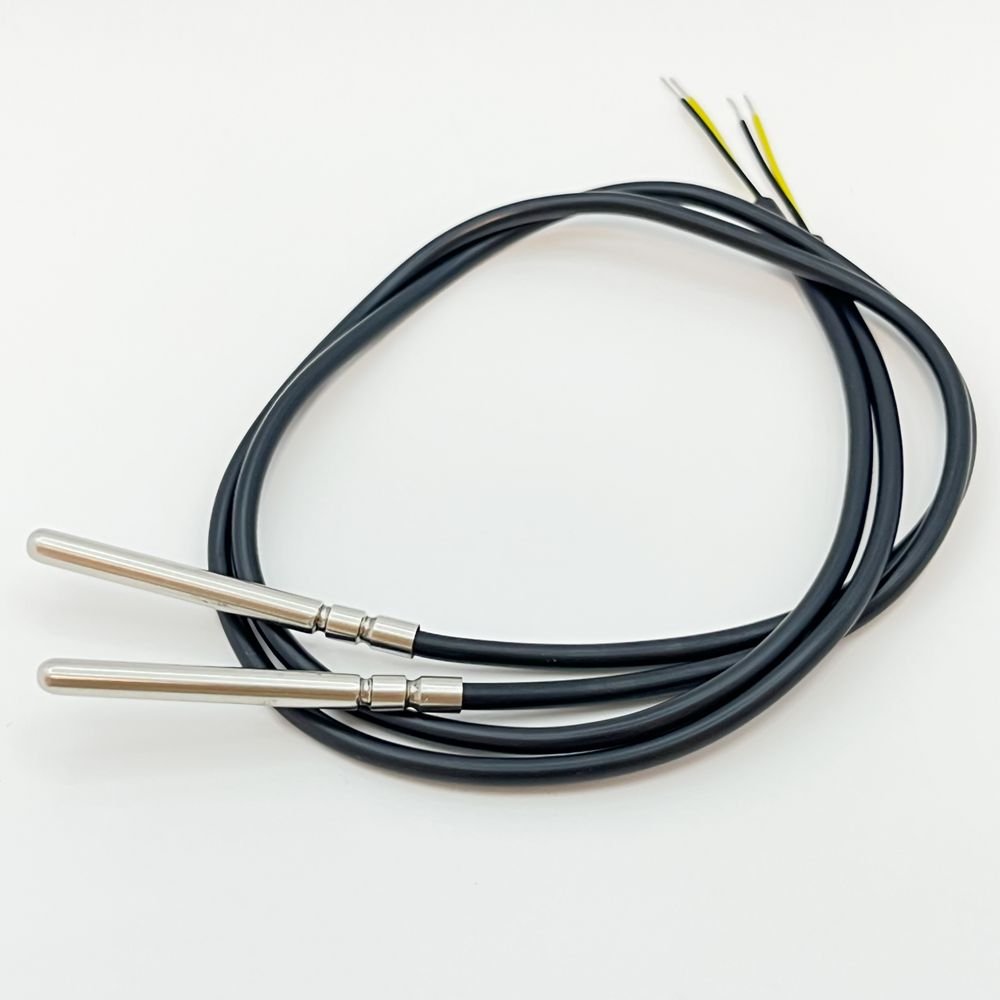

RTD Temperature Sensors TYPE TS31

TS31 series RTD Temperature Sensor Probe adopts platinum sensing elements including Pt100, Pt200, Pt500 and Pt1000 compliant with DIN EN 60751. Available in 2/3/4-wire configurations, the sensor is fitted with customizable metal probe housings and leads. It delivers excellent linearity, high precision and outstanding long-term stability over a wide temperature range. Waterproof stainless steel housing supports reliable measurement under harsh working conditions for industrial, HVAC and automotive temperature control.

Datasheet Download

Features

Multiple element options: Pt100, Pt200, Pt500, Pt1000
High accuracy and superior long-term stability
Support 2-wire, 3-wire and 4-wire connection modes
Waterproof stainless steel probe, resistant to corrosion and moisture
Compliant with DIN EN 60751 international industrial standard
Wide operating temperature range: -200°C to 850°C

Applications

HVAC heating, ventilation and air conditioning systems
Industrial equipment, drying ovens and constant temperature cabinets
Automotive coolant, oil and exhaust temperature monitoring
Household appliances such as ovens, water dispensers and refrigerators
Medical equipment, 3D printing and industrial process temperature detection

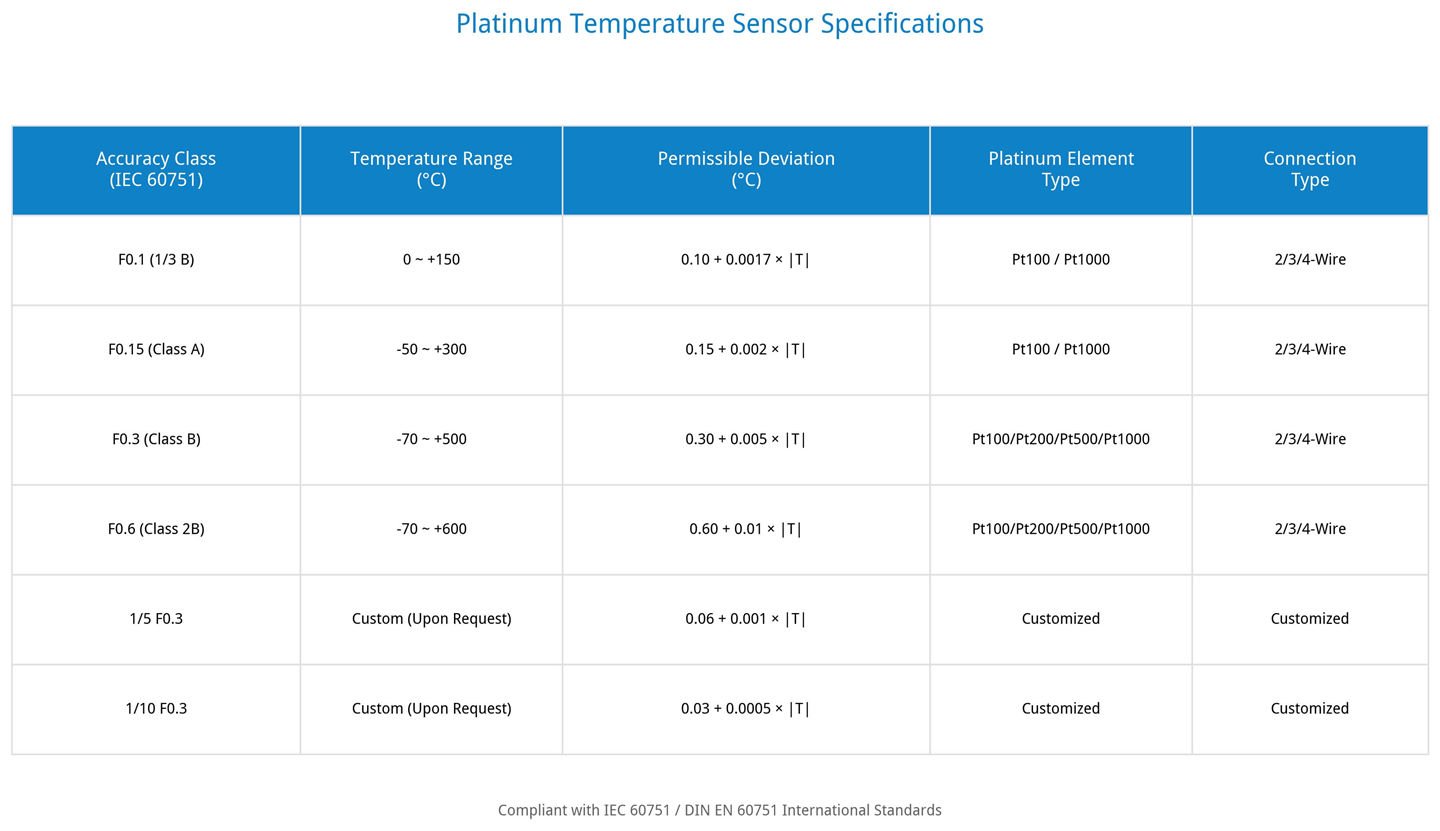

Standard Tolerance

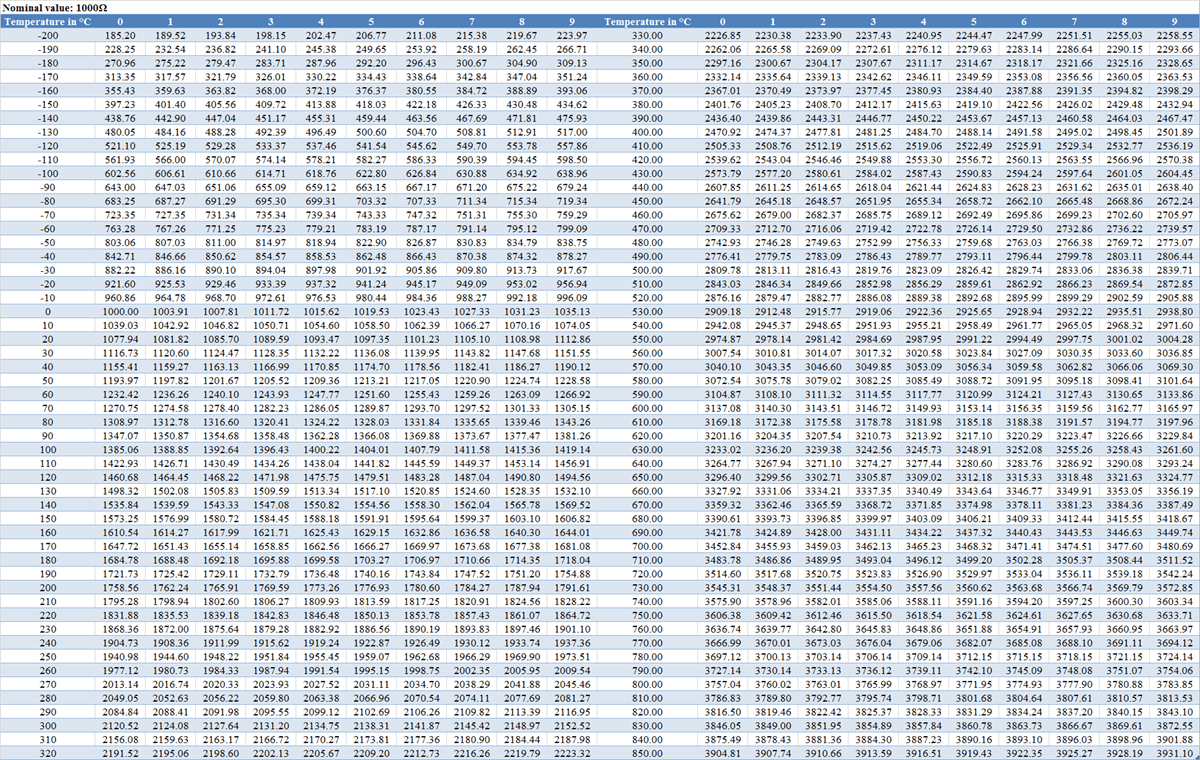

Standard RT

Specification

Additional information

Time Constant	≤20 seconds (still air)
Operating Temperature	-50~400°C
